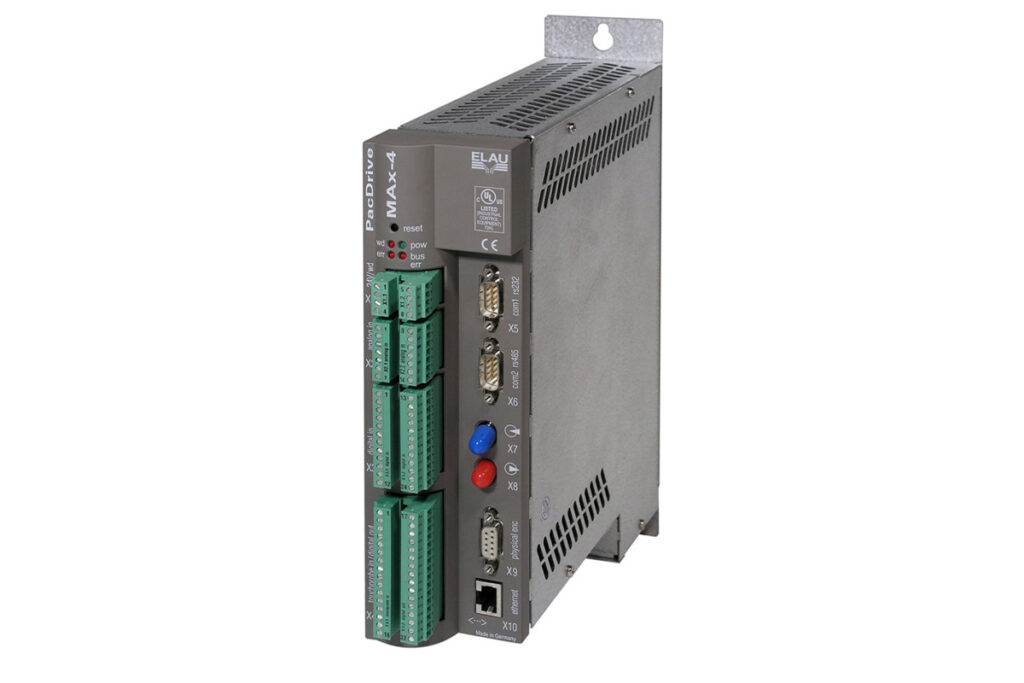

ELAU PacDrive Max4 Controller
ELAU PacDrive Max4 Controller
Il controllore PacDrive Max4 è una delle soluzioni di controllo più datate della gamma di prodotti ELAU PacDrive. Il controllore ELAU Max4 è disponibile in 2 diverse versioni: una in grado di controllare fino a 8 azionamenti MC4, l’altra in grado di controllare fino a un massimo di 99 azionamenti ELAU MC4. Utilizza il sistema operativo real-time VxWorks, che gestisce le funzioni logiche e di movimento di una macchina di produzione o di confezionamento. Un controllore PacDrive sincronizza, coordina e genera le funzioni di posizionamento per un massimo di 8 servoazionamenti, collegati tramite l’interfaccia bus SERCOS.
Sono disponibili diverse interfacce bus di campo standardizzate: PROFIBUS DP, CAN, CAN-open o DeviceNet. Per le funzioni HMI è possibile utilizzare una varietà di sistemi HMI standard, dai display di testo economici ai PC industriali.
Product ID code
– MAx-4 up to 8 axes: MAx-4 / 11 / 02 / 016 / 08 / x / x / xx
– MAx-4 up to 99 axes: MAx-4 / 11 / 02 / 016 / 99 / x / x / xx
Order code
– MAx-4 up to 8 axes: 13 13 02 51 – xxx
– MAx-4 up to 99 axes: 13 13 02 55 – xxx
| Parameter | Value |
| Product ID code – MAx-4 up to 8 axes – MAx-4 up to 99 axes | MAx-4 / 11 / 02 / 016 / 08 / x / x / xx MAx-4 / 11 / 02 / 016 / 99 / x / x / xx |
| Order code – MAx-4 up to 8 axes – MAx-4 up to 99 axes | 13 13 02 51 – xxx 13 13 02 55 – xxx |
| CPU | Intel Pentium II 266 MHz |
| RAM | 32 MB |
| L2 Cache | 512 kB |
| NVRAM | 32 kB |
| CompactFlashTM Disk | 16 MB (internal) |
| Real time clock (RTC) | yes, optional hardware required |
| Watchdog | yes |
| Diagnostics | status LEDs |
| Real-time operating system | VxWorks |
| Programming languages IEC 61131-3 | Continuous Function Chart (CFC) Function Block Diagram (FBD) Instruction List (IL) Ladder Diagram (LD) Sequential Function Chart (SFC) Structured Text (ST) |
| Communication interfaces COM1 COM2 | RS232 (X5) RS485 (X6) |
| Network interface | Ethernet (10 Base-T) (X10) |
| Fieldbus interfaces | PROFIBUS DP Master (12 MBaud) 1) PROFIBUS DP Slave (12 MBaud) 1) CAN (2.0B) 1) CANopen 1) DeviceNet Slave 1) Ethernet/IP Slave 1) 1) optional hardware module required |
| Motion bus interface | SERCOS interface (4 MBaud) (X7, X8) |
| PacNet interface | 1 PacNet interface1) 1) optional hardware module required |
| Encoder interface | 1 SinCos encoders up to 10 incremental encoder1) 1) optional hardware module required |
| HMI interface | Operator panels: RS485 using Modbus or PROFIBUS DP HMI software tools: OPC server (Windows NT/2000/XP or Windows CE) |
| Remote Diagnostics interface | Web server or modem |
| Communication protocols | http, ftp, SMTP (email) |
| Integrated trace recorder (software oscilloscope) | 8 channels 1 msec resolution |
| Integrated logger for diagnostic messages | 27 kB |
| Motion performance | 11 Servo axes @ 1 ms SERCOS cycle 23 Servo axes @ 2 ms SERCOS cycle 45 Servo axes @ 4 ms SERCOS cycle max. 255 cam profiles running in parallel |
| PLC performance | 15 µsec for 1000 Bit instructions unlimited number of PLC tasks PLC task types: continuous, periodic or event-triggered Cycle time Fast Task: 250 µsec Nominal I/O response time: 500 µsec (reading input, processing data, setting out put) |
| Programmable limit switches (PLS) | max. 256 Type: dynamic Outputs: memory or digital outputs Inputs: external master encoder, virtual mas ter encoder, or axes position Scan time: 250 µsec |
| Parameter | Value |
| Integrated digital inputs (X3) | number: 20 range UIN 0 state: DC 0 … 6 V range UIN 1 state: DC 20 … 33 V input current: IIN = 5 mA on UIN = 24 V pole safe: yes input filter: 3.5 … 5.5 ms |
| Integrated analog inputs (X2) | number: 2 range UIN: -7 … 10 V (impedance 100 k) or range IIN: 0 … 20 mA (impedance 500 R) |
| Integrated interrupt inputs (X4) | number: 4 range UIN 0 state: DC 0 … 6 V range UIN 1 state: DC 20 … 33 V input current: IIN = 5 mA on UIN = 24 V pole safe: yes input filter: 0.07 … 0.17 ms |
| Integrated touchprobe inputs (X4) | number: 16 range UIN 0 state: DC 0 … 6 V range UIN 1 state: DC 20 … 33 V input current: IIN = 5 mA on UIN = 24 V pole safe: yes input filter TP0 to TP15: 100 µs resolution time TP0 to TP3: 15.6 µs @ 1, 2, 4 ms cycle time resolution time TP4 to TP15: 15.6 µs @ 1 ms cycle time 32.25 µs @ 2ms cycle time 62.5 µs @ 4ms cycle time |
| Integrated digital outputs (X4) | number: 16 output voltage: (+UL-3 V) < UOUT < +UL rated current: I e = 100 mA per output switch current: I emax < 0.5 A for 1 s leakage current 0 signal: < 0.4 mA transmission time: 0.04 … 0.31 ms short-circuit-proof: yes relay outputs: DC 20 … 30 V / 2 A |
| Integrated analog outputs | none |
| Additional digital and analog I/Os | via fieldbus max. 3.584 Bytes digital/analog inputs and max. 3.584 Bytes digital/analog outputs max. number of stations: 126 (PROFIBUS) |
| Parameter | Value |
| Additional fast digital I/Os | via PacNet max. 128 inputs and 128 outputs |
| Additional touchprobe inputs | via PacNet max. 16 touchprobe inputs |
| Power supply | DC 24 V (-15% / +25%) / max. 3.15 A |
| Power consumption | max. 60 W |
| Uninterruptable power supply UPS | external |
| Product size Box size | width: 69 mm height: 270 mm depth: 240 mm width: 100 mm height: 400 mm depth: 300 mm |
| Product weight Boxed weight | 2.4 kg 3.0 kg |
| Ambient conditions – protection class – ambient temp. – insulation – rel. humidity | IP20 +5 … +55 °C (in operation) -25 … +70 °C (for storage and transport) degree of pollution 2 …, no dewing allowed 5% … 85% climatic category 3K3 EN 60 721 |
| Approvals | CE, UL , cUL |
